XSWITCH-4 CORE

The XSWITCH series offers a flexible, manufacturer-independent interface for professional video switching workflows. It is designed to work with different video platforms and production systems, giving users the freedom to implement the most suitable backend solution and even change backends between productions, while maintaining the same great tactile feel and easy workflow across different backends.

Being extremely scalable both in MEs and channels, XSWITCH is suitable for control rooms, outside broadcasting, remote productions and event venue live productions of all magnitudes. Need audio as well? Add XCEL panels to compose integrated video/audio live workstations and bind both to the backend targets of your choice.

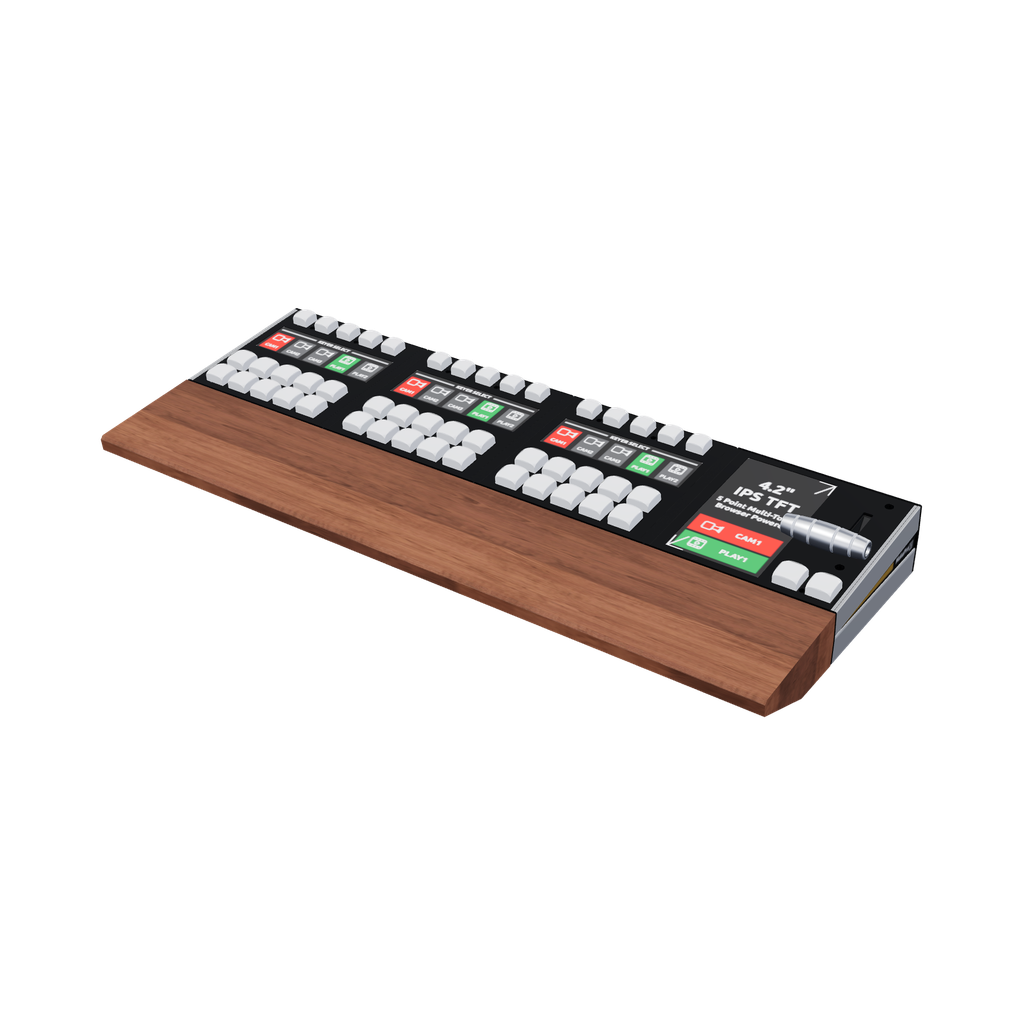

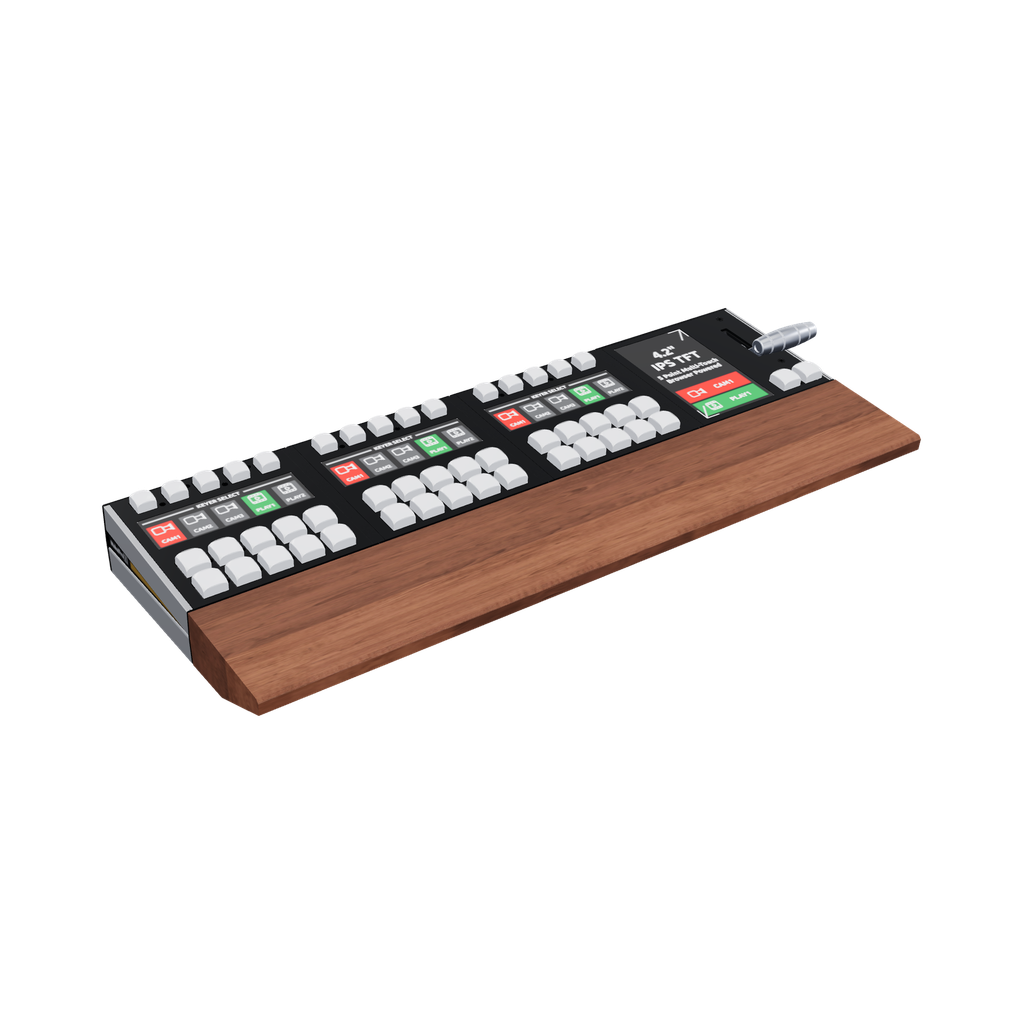

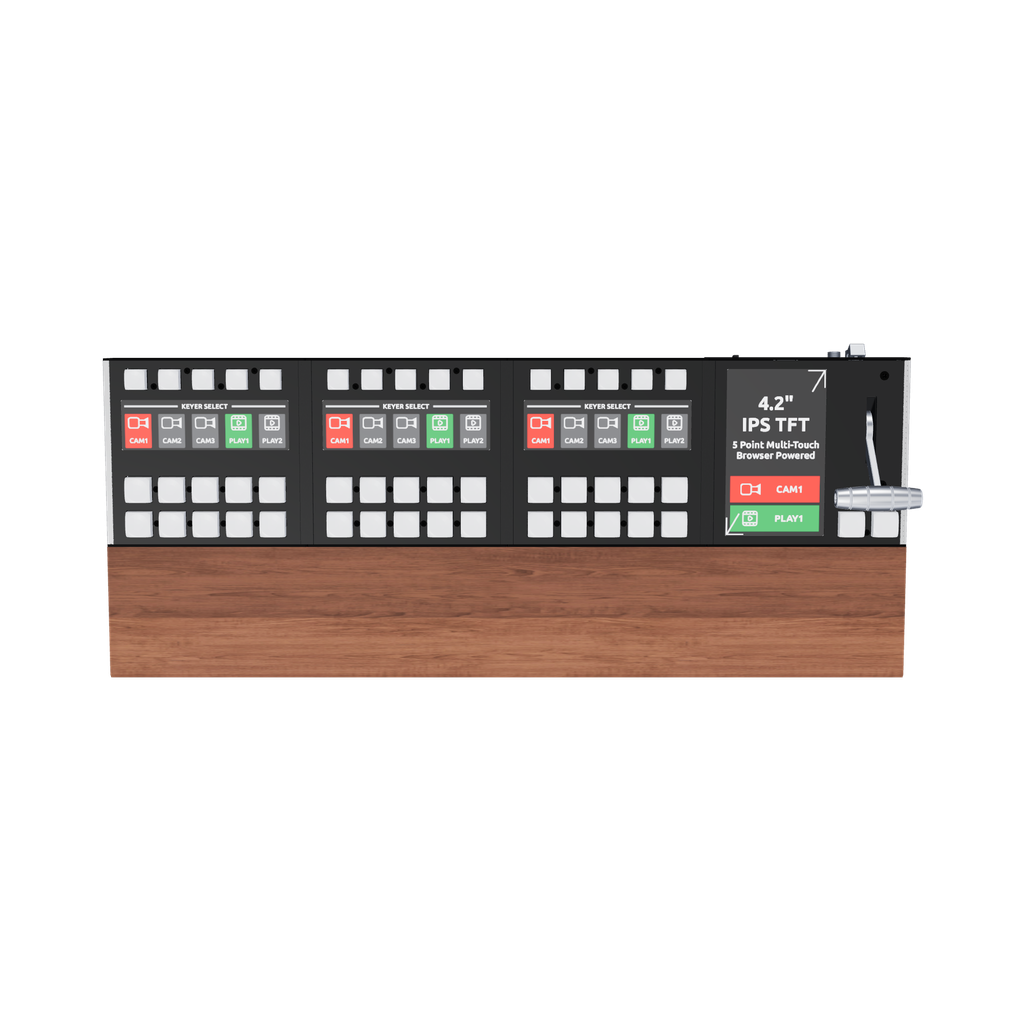

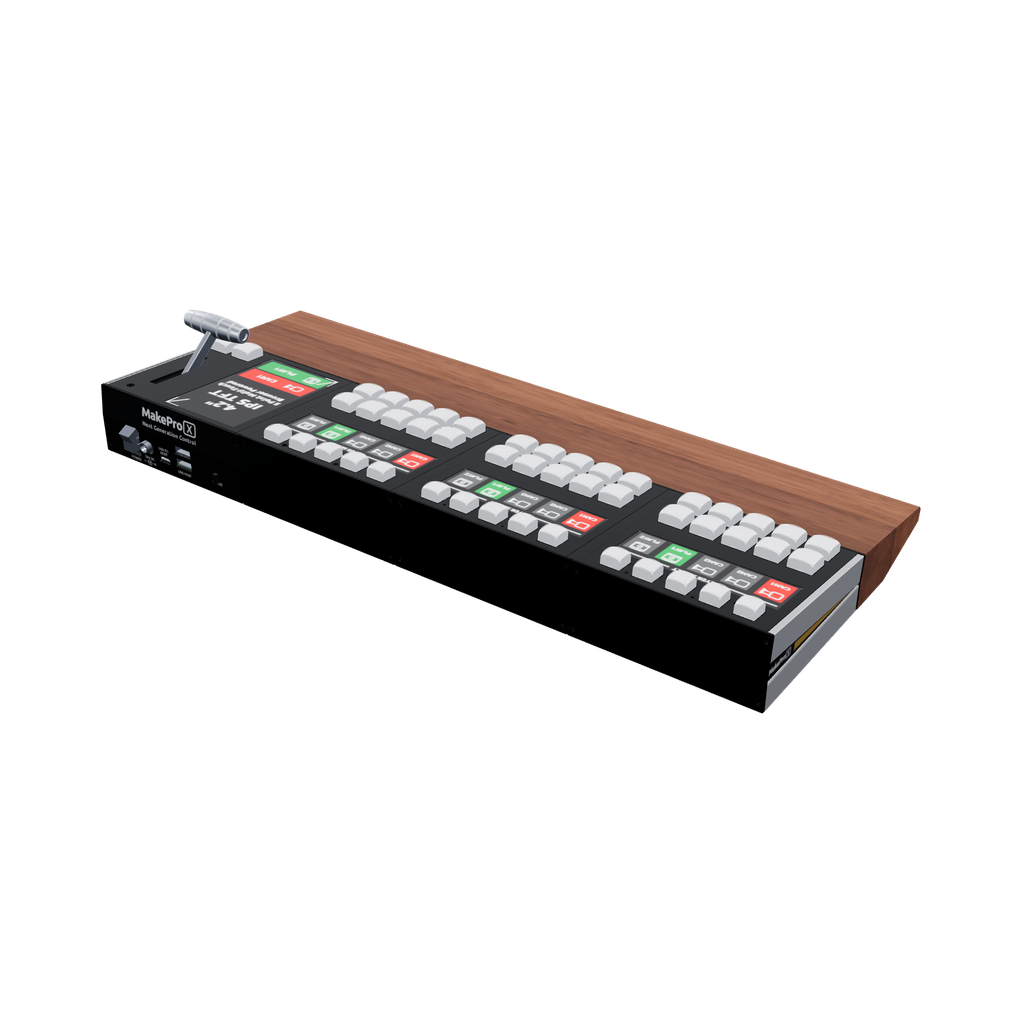

A stunning compact video switching panel with prime-quality NKK Switches, a hall-effect T-Bar and multiple "cut screen" and "full screen" format IPS displays with multitouch, powered by a modern WebKit browser, showing touch widget pages you build in Glue or showing the content of any other URLs. Connects via USB C cable and features a USB Hub (adds two USB Type A ports which go upstream to the host). Comes with 2A power supply required to power all elements. Can be neatly extended with the XSWITCH-4 SWITCH or XPERT-4 devices which simply plug into its USB Type A ports.

• Device is 4 row(s) deep and 4 segment(s) wide
• Dimensions: 193,5 mm deep and 480 mm wide
• Comes with USB+12V interface
• Elegant wedge made from walnut
• Including 12V power-supply (2 Ampere)
