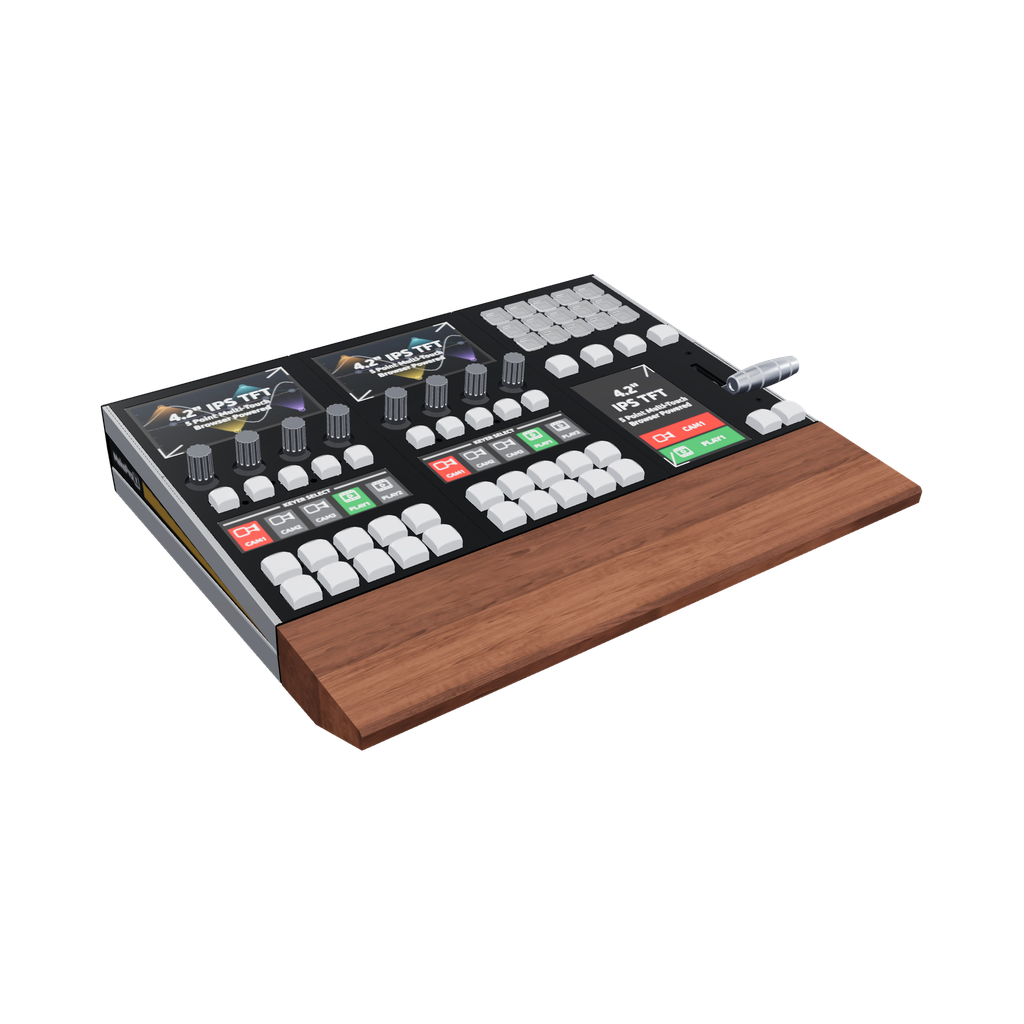

XSWITCH-8 CORE

The XSWITCH series offers a flexible, manufacturer-independent interface for professional video switching workflows. It is designed to work with different video platforms and production systems, giving users the freedom to implement the most suitable backend solution and even change backends between productions, while maintaining the same great tactile feel and easy workflow across different backends.

Being extremely scalable both in MEs and channels, XSWITCH is suitable for control rooms, outside broadcasting, remote productions and event venue live productions of all magnitudes. Need audio as well? Add XCEL panels to compose integrated video/audio live workstations and bind both to the backend targets of your choice.

A quite compact but powerful video switching panel with prime-quality NKK Switches, a hall-effect T-Bar, eight touch-sensivite endless rotary encoders and two "full screen" format IPS display with multitouch, powered by a modern WebKit browser, showing touch widget pages you build in Glue or showing the content of any other URLs. Also features an original Elgato Stream Deck module which you can drive via Glue, Elgato or Bitfocus software. Connects via USB C cable and features a USB Hub (adds two USB Type A ports which go upstream to the host). Comes with 5A power supply to power all its elements.

• Device is 8 row(s) deep and 3 segment(s) wide
• Dimensions: 303,5 mm deep and 360 mm wide
• Elegant wedge made from walnut
